我公司生产的单绳缠绕式提升机塑料衬板（简称塑衬），是目前替代木质滚筒衬板的良选，该产品经过0.8-5.0m各类型的单绳矿井提升机十余年的使用和检测证明，塑衬与木衬相比有如下特点：

1、机械强度高、使用寿命长

抗压强度比木衬高7-10倍，不会出现压碎、绳槽搓平现象，而且使用寿命高于木衬5倍以上。

2、适应范围广

抗干裂耐潮湿性能高，不会出现木衬的干裂、腐烂等现象，特别适合矿井淋水大、腐蚀性强等恶劣环境及井下条件使用。

3、比重轻、不吸水

比重为0.98g/cm，比吸水后的木衬还轻，因此更换塑衬后不会增加设备转动惯量和无功功率。

4、模压成型、绳槽表面光滑

安装方便，钢丝绳排列整齐，不会出现“咬绳、跳绳”等现象，大大延长钢丝绳的使用寿命。

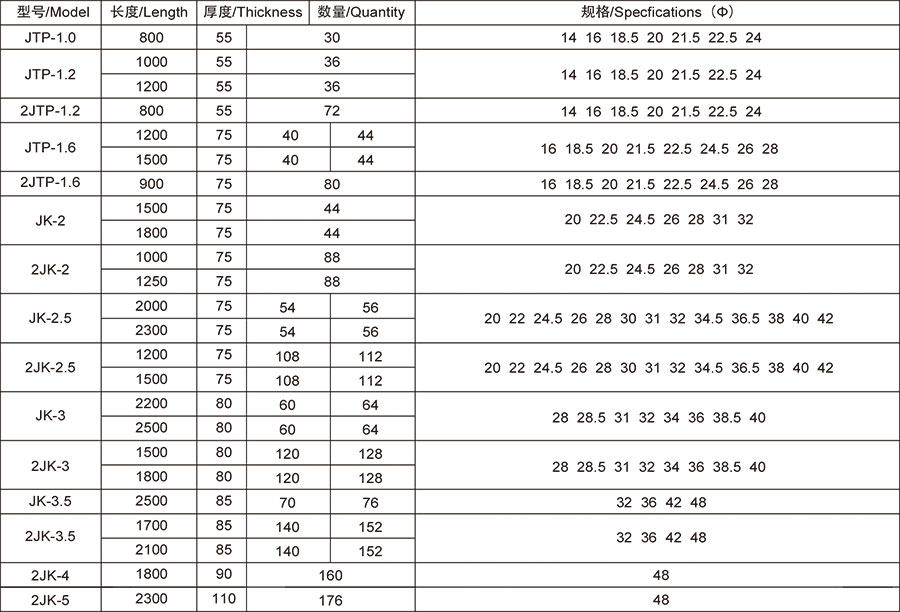

提升机塑衬规格尺寸参数表/Plastice Gasket Dimension Datasheet

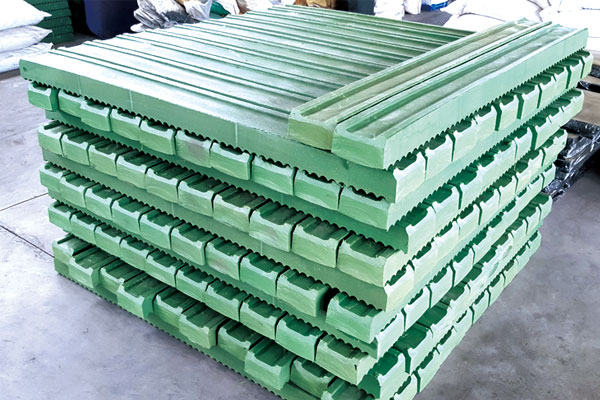

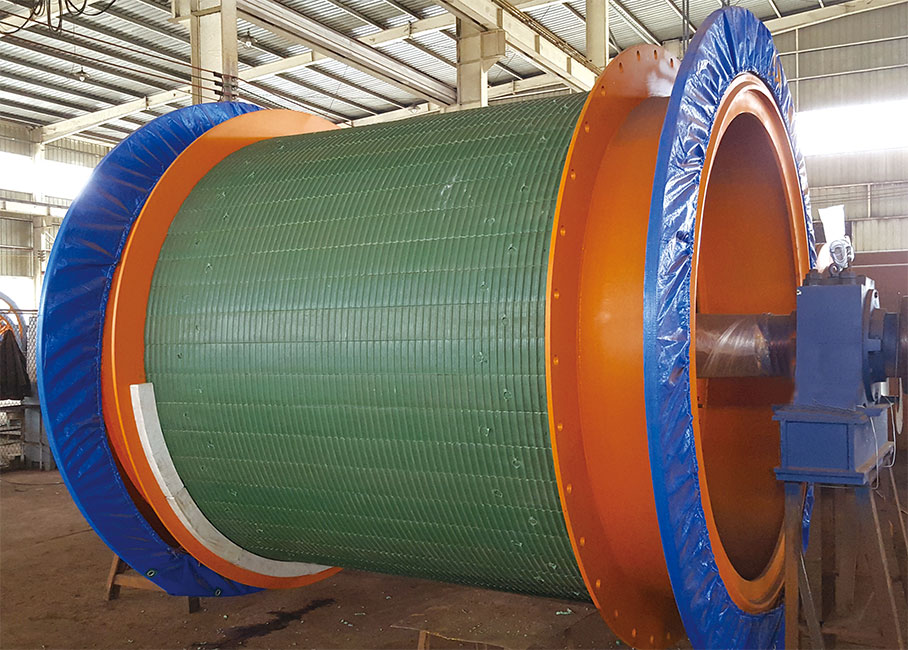

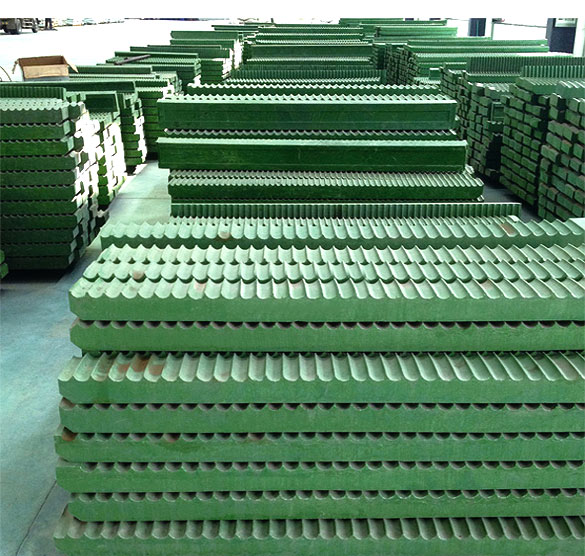

Our single-rope winding hoist plastice gasket, is now the best choose to replace wooden roller plate. More than ten years usage and test of 0.8-5.0m different kinds single rope hoist proves this product has below characters.

1.Hgh mechnical hardness, long lifetime.Compressive strength is more than 7 to 10 times the wood liner, crashing, score floating will not happen and the lifetime is 5 times longer than wooden gasket.

2.Widely usage.High resistance to cracking and moisture resistance, without weather-shack, rotting like wood liner, especially suitable to large mine watering, strong corrosion and other bad environment as well ad undergrand conditions.

3.Light  Proportion and No absorbing water.The proporaion is 0.98g/cm, is lighter than wooden after absorbing water.So it will not increase rotational inertia and reactive power.

4.Compression molding, smooth scrope surface.Easy to asemble, steel wire is placed in order to avoid cutting rope and rope score phenomenon. It highly prolongs the lifetime of steel wire.
